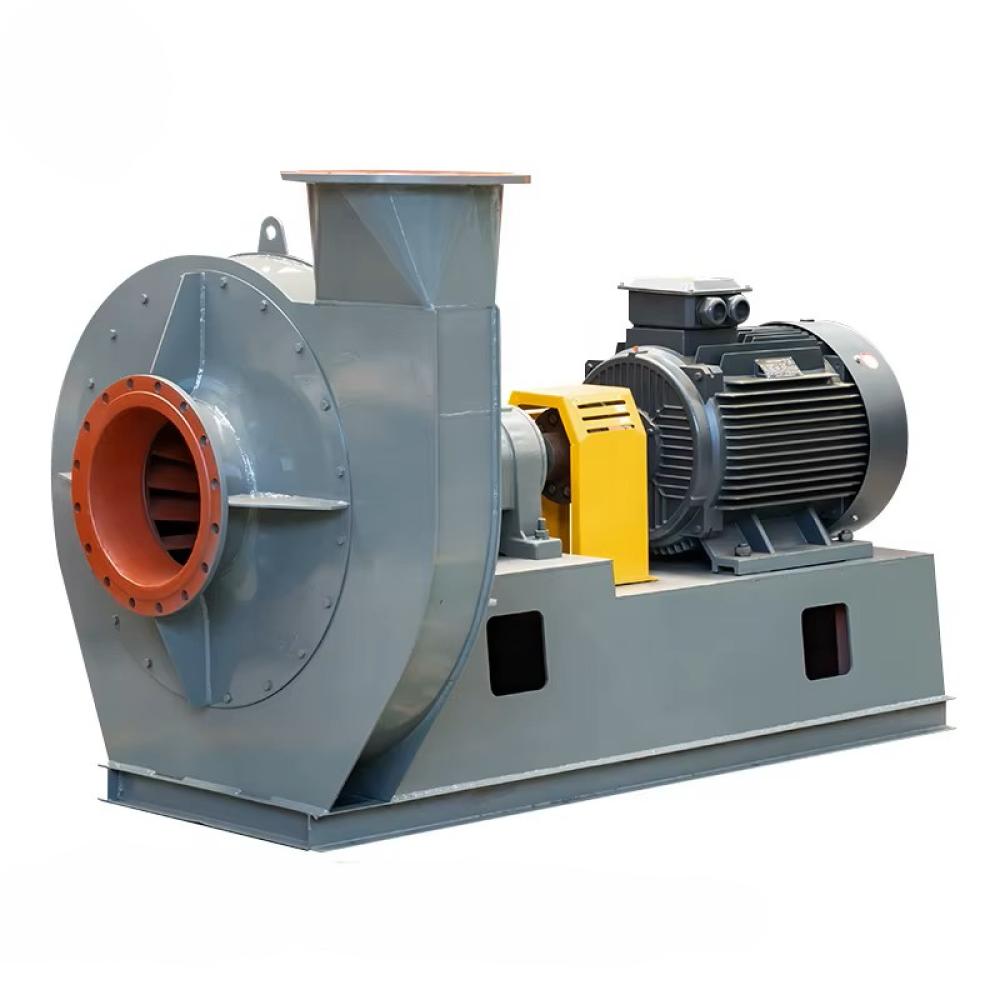

This Steam Exhaust Blower Assembly with Motor (Model: KE-CF/30 SISW) is a heavy-duty industrial unit designed for high-efficiency steam and hot air evacuation applications. The included 3-phase induction motor by Apex provides robust and reliable performance in continuous operations, ideal for high-temperature industrial environments.

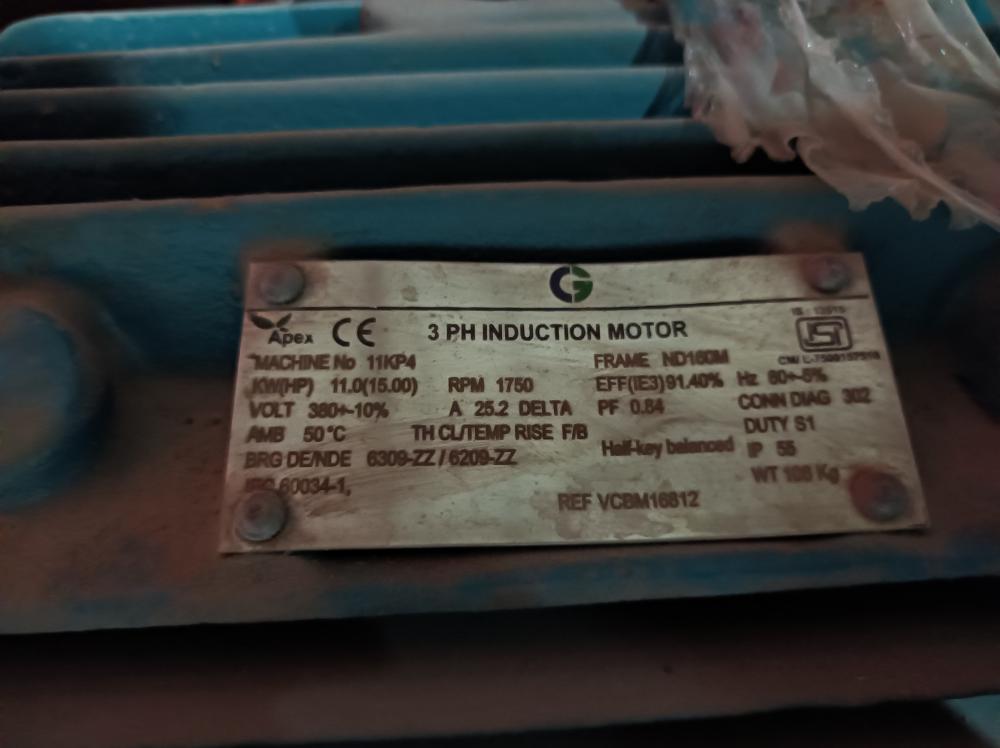

Key Specifications:
- Model: KE-CF/30 SISW
- Motor Power: 11 kW (15 HP)
- Voltage: 380V ±10%
- Current: 25.2 A (Delta)
- RPM: 1750
- Efficiency: 91.40% (IE3)
- Frequency: 60 Hz
- Duty: S1 (Continuous)
- Protection: IP55
- Weight: 108 kg
- Shaft: Half-key balanced
- Bearings: 6309-ZZ / 6209-ZZ
- Temp Rise: F/B Insulation Class
- Application: Steam exhaust, hot gas evacuation
- Country of Origin: INDIA
